Fan Flow Measurement in Cement Plants: Methods, Calculations & Optimization

Engineering Guide to Accurate Fan flow Monitoring, Fan Efficiency and Gas Velocity Calculations

Why Actual Fan Flow Measurement is Important

During routine operation, fan performance is often evaluated using parameters available in the DCS such as fan RPM, damper position, draft and motor current. While these parameters provide a general indication of system behaviour, they do not always represent the actual gas quantity moving through the process. During fan performance audits, it is frequently observed that RPM, damper opening and even motor load remain nearly unchanged for long periods, while the actual gas flow through the system changes significantly. This happens because gas flow inside a cement plant is influenced by several factors beyond fan speed alone.

For example, a damaged cyclone dip tube can increase dust recirculation and alter the resistance profile of the preheater system. Similarly, coating formation inside riser ducts, cyclone cones or gas ducts gradually reduces the effective flow area. In some cases, false air ingress through expansion joints, inspection doors or kiln inlet seals increases the total gas volume handled by the fan without any corresponding increase in production. Changes in gas temperature also affect gas density, which directly influences actual flow calculations and fan operating conditions because of these factors, two operating conditions showing identical fan RPM, damper position and motor current may still have completely different gas flow rates. This is one of the main reasons why relying only on DCS indications can sometimes lead to incorrect conclusions during troubleshooting and process optimization activities.

Actual flow measurement therefore becomes an essential part of any detailed process study. Whether the objective is kiln heat balance preparation, false air quantification, fan performance verification, cyclone efficiency assessment or specific heat consumption reduction, reliable flow data provides the foundation for meaningful analysis. Another important observation from field audits is that the value of flow measurement does not lie merely in obtaining a final Nm³/hr figure. The real benefit comes from understanding how efficiently the process is moving gas through the system. Once the actual flow is known, it becomes possible to compare measured values with design conditions, identify excess airflow, verify DCS calculations, estimate false air ingress, evaluate fan operating efficiency and determine whether the process is consuming additional power or fuel to move unnecessary gas volumes.

In many optimization projects, the most valuable outcome of a flow study is not the flow number itself, but the operational decisions that become possible after the measurement is completed.

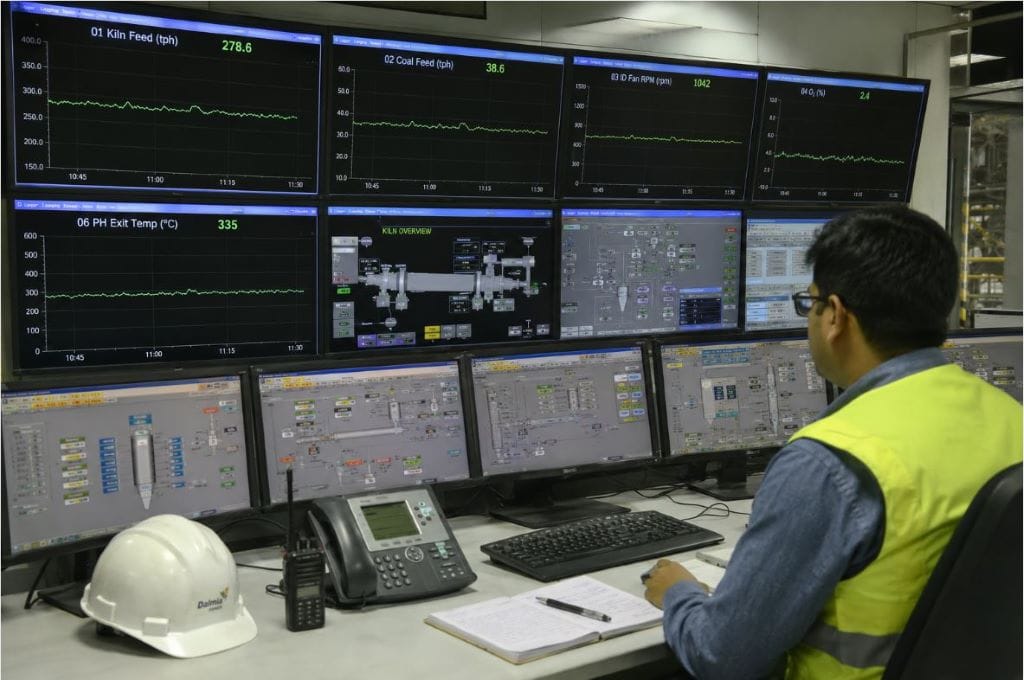

Step 1: Ensure Stable Operating Conditions Before Flow Measurement

One of the most common mistakes during fan flow studies is taking measurements while the process is unstable. Under fluctuating operating conditions, the measured flow may represent only a temporary operating state rather than the actual process requirement. Any calculations based on such data can lead to incorrect conclusions regarding false air, heat balance, fan performance or system resistance.

Before starting the flow measurement activity, the process should be allowed to stabilize. Ideally, major operating parameters should remain reasonably constant for at least one hour prior to the test. The following parameters should be checked from the DCS:

• Kiln feed rate stable
• Coal feed stable
• Main burner firing conditions unchanged
• Fan RPM constant
• Damper or guide vane position stable
• Preheater exit gas temperature stable
• Calciner operating conditions stable
• Raw mill operating mode unchanged (On/Off condition unchanged)
• Production rate constant

For Raw Mill ID Fan measurements, special attention should be given to raw material moisture, mill differential pressure, separator speed and mill ventilation conditions. Similarly, for Kiln ID Fan measurements, kiln feed fluctuations, coating fall events, cyclone jamming or coating build-up should not be occurring during the measurement period. Once stable operation is confirmed, a complete DCS snapshot should be recorded. This operating data serves as the reference condition for the entire study and becomes extremely important during later analysis.

Typical parameters recorded include:

During analysis, all measured flow values are compared against these operating conditions. If a significant deviation is observed between measured flow and DCS-indicated flow, this reference data helps determine whether the difference is caused by instrumentation error, false air ingress, process instability, duct blockage, cyclone deterioration or fan performance degradation.

In many plant audits, nearly 50% of troubleshooting time is spent investigating flow measurement results without first verifying operating stability. A reliable flow study therefore begins not with the pitot tube, but with confirming that the process itself is operating under stable and representative conditions.

Recommended Reading: For practical insights into kiln optimization, heat balance calculation, thermal efficiency improvement, and reducing heat losses in cement plants, read this detailed guide on Amazon Kindle.

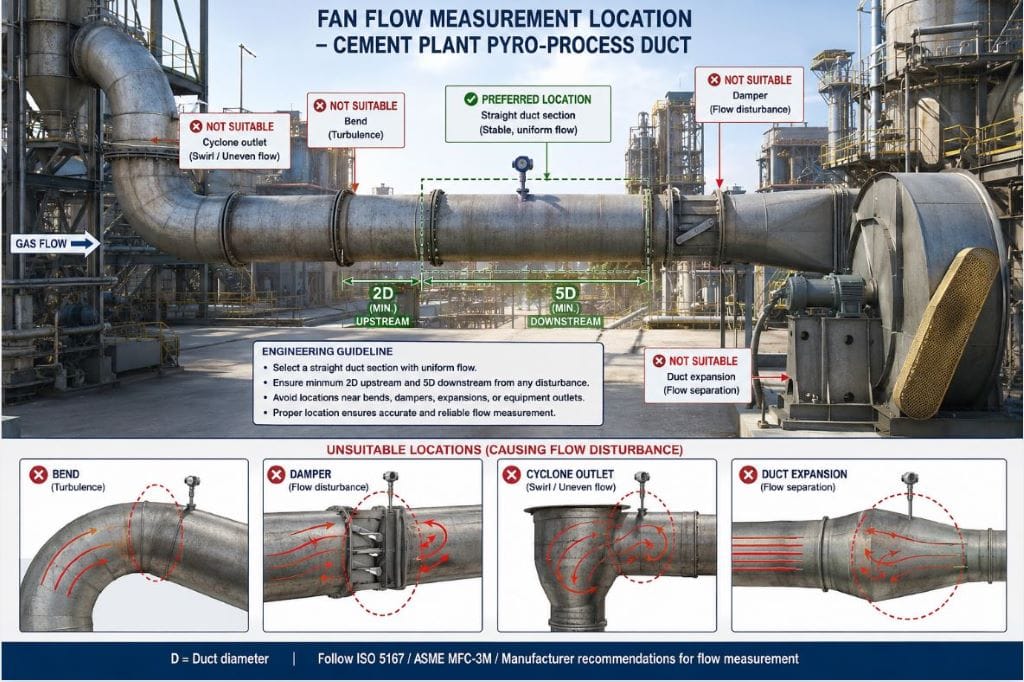

Step 2: Select the Correct Measurement Location

The accuracy of any fan flow study depends heavily on the location where the measurement is taken. Even the most accurate pitot tube, differential pressure transmitter or flow measurement instrument will produce unreliable results if installed at a poor measurement location. In cement plants, this is one of the most overlooked aspects of flow measurement. During audits, large deviations are often observed between measured flow and actual process conditions simply because the measurement point is located too close to a bend, damper, cyclone outlet or fan casing.

The purpose of selecting a proper measurement location is to ensure that the gas stream has developed a reasonably stable velocity profile across the duct cross-section. When gas passes through a bend, damper or sudden change in duct geometry, the velocity distribution becomes highly distorted. Some portions of the duct may experience very high velocities while other areas experience stagnant or recirculating flow zones. If measurements are taken in such locations, the calculated average velocity may not represent the actual gas quantity moving through the system.

Preferred Measurement Location

Whenever possible, select a duct section having:

• Straight duct length available
• Uniform cross-sectional area
• Minimum turbulence
• No nearby bends
• No control dampers immediately upstream
• No expansion joints causing leakage
• No sudden duct expansion or contraction
• No material build-up reducing flow area

A commonly accepted guideline is:

• Minimum 5X duct diameters downstream of a major disturbance
• Minimum 2X duct diameters upstream of a major disturbance

This allows the gas flow profile to stabilize before measurements are taken.

Example

If a duct diameter is 4 metres:

• Preferred distance after a bend = 20 metres
• Preferred distance before the next disturbance = 8 metres

In actual cement plants, achieving these ideal distances is often difficult due to space limitations inside the preheater tower and fan circuits. Therefore, engineering judgement becomes important when selecting the best available location.

Common Problem Areas to Avoid

Flow measurements should generally be avoided at:

• Fan discharge immediately after the fan casing
• Fan inlet elbows
• Cyclone outlet bends
• Riser ducts immediately after sharp turns
• Areas with visible coating formation
• Duct sections having severe air leakage
• Locations immediately downstream of dampers or guide vanes

These areas often contain swirling flow patterns that produce misleading velocity readings.

Physical Inspection Before Measurement

Before deciding the measurement location, a physical inspection of the duct should be carried out.

During inspection, check for:

• Available straight length
• Internal coating indication from external shell temperatures
• Inspection doors
• Expansion joints
• Structural deformation
• Existing measurement ports
• Accessibility and safety arrangements

Many plants have permanent measurement ports installed years earlier. However, process modifications, duct rerouting and coating build-up may have changed the flow profile significantly. Existing ports should therefore not be assumed to be suitable without verification.

Why Location Selection Matters

A poorly selected measurement location can easily introduce errors of 10% to 25% even when the velocity measurements themselves are correct. For example, if a pitot traverse is performed immediately after a sharp elbow, the velocity profile may be heavily skewed toward one side of the duct. The calculated average velocity will then overestimate or underestimate the true gas flow.

Such errors eventually affect:

• Kiln heat balance calculations
• False air assessment
• Fan performance evaluation
• Cyclone efficiency studies
• Specific Heat Consumption (SHC) calculations
• Specific Power Consumption (SPC) calculations

For this reason, experienced process engineers often spend more time selecting the measurement location than performing the actual velocity measurements. A well-chosen location can improve the accuracy of the entire flow study before a single reading is taken.

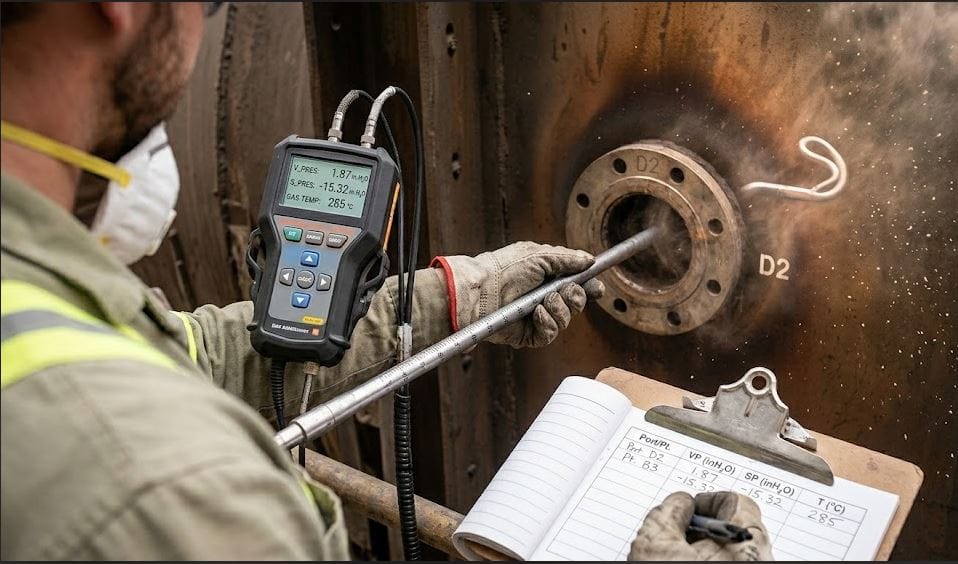

Step 3: Preparing the Measurement Points

After selecting a suitable measurement location, the next step is deciding where the velocity readings will be taken. In engineering textbooks, a complete velocity traverse is often recommended, where the duct cross-section is divided into multiple zones and measurements are taken at 16, 25 or even 36 different points. While this approach provides the highest accuracy, it is rarely practical in operating cement plants.

Most preheater, Kiln ID fan and Raw Mill circuits have large ducts operating under high temperatures, heavy dust loading and limited accessibility. In many cases, only one measurement port is available and inserting a long pitot tube through multiple traverse points becomes difficult.

Practical Method Commonly Used in Cement Plants

During routine fan performance audits, heat balance studies and process troubleshooting exercises, a simplified measurement approach is normally adopted. The pitot tube is inserted through the available measurement port and positioned at a representative location inside the duct. Instead of relying on a single reading, multiple observations are taken under stable operating conditions.

A typical field practice is:

• Insert the pitot tube to the selected depth.
• Allow the reading to stabilize.
• Record 10 to 15 velocity pressure readings by inserting pitot from outer to centre of Duct.
• Repeat the measurement two or three times.
• Verify pitot alignment before each measurement.
• If access is available, repeat the measurement from the opposite side of the duct for cross-checking.

This method improves confidence in the measurement and helps identify random fluctuations caused by gas pulsation, dust loading or temporary process disturbances.

Why Multiple Readings Are Important

Gas flow inside cement plant ducts is never perfectly stable. Even under steady kiln operation, velocity pressure may fluctuate because of:

• Cyclone discharge variations
• Fan pulsations
• Process draft fluctuations
• Dust loading changes
• Material movement inside the preheater

For this reason, relying on a single instantaneous reading can be misleading. Taking multiple readings and calculating an average value generally provides a more representative result.

Practical Challenges During Measurement

Field measurements in cement plants often involve several difficulties that are not considered in standard flow measurement manuals. Common challenges include:

• High duct shell temperatures
• Restricted access platforms
• Heavy dust accumulation around ports
• Limited pitot tube length
• Strong gas pulsations
• Difficulty maintaining probe alignment
• Leakage around measurement ports

Because of these factors, achieving laboratory-level accuracy is rarely possible in operating conditions. The objective of the exercise is to obtain a reliable and repeatable flow value that can be used for process analysis and comparison.

Quality Checks During Measurement

While recording readings, engineers should continuously monitor the consistency of the velocity pressure values. Unusual or highly fluctuating readings may indicate:

• Partial pitot blockage
• Incorrect pitot orientation
• Dust accumulation inside sensing ports
• Flow swirl inside the duct
• Local coating formation
• Measurement port damage

Whenever an abnormal reading is observed, the measurement should be repeated after cleaning and re-aligning the probe.

Practical Experience

In many cement plant audits, the most useful information comes not from obtaining an extremely precise flow value, but from maintaining a consistent measurement methodology.

If the same measurement location, pitot insertion depth and calculation method are used during every audit, flow trends can be tracked reliably over time. These trends are often sufficient to identify false air ingress, fan performance deterioration, duct blockages and process inefficiencies long before they become visible in production or power consumption data.

Step 4: Measure Velocity Pressure

Once the pitot tube is installed at the selected measurement location, the actual velocity pressure measurement can begin. In cement plants, an S-Type Pitot Tube is commonly used because it can withstand high temperatures and dusty gas conditions better than many other flow measurement devices.

During the measurement, the following parameters should be recorded simultaneously:

• Velocity Pressure (Pv)
• Static Pressure
• Gas Temperature

These three parameters form the basis of all subsequent flow calculations.

Record Readings Only Under Stable Conditions

After inserting the pitot tube into the gas stream, do not immediately record the value. Allow the pressure indication to stabilize first. Gas flow inside kiln and raw mill circuits is rarely perfectly steady. Small fluctuations are normal due to:

• Cyclone discharge variations
• Draft controller actions
• Fan pulsations
• Process disturbances
• Dust loading changes

For this reason, multiple readings should be taken and averaged rather than relying on a single observation.

Actual Field Example – Pyro Fan

During a fan performance study, the following operating conditions were recorded:

Instead of taking a single reading, velocity pressure was observed multiple times.

Average Dynamic Pressure:

Pv(avg) = 19.18 mmWG

This is the same average dynamic pressure value calculated in the fan study sheet for Pyro Fan.

Dealing With High Dust Loading

In kiln ID fan, preheater and raw mill circuits, dust accumulation can quickly affect measurement accuracy. If dust loading is high:

• Use purge air if available.
• Periodically clean pitot ports.
• Verify that sensing holes are not blocked.
• Repeat any suspicious reading.
• Compare readings with previous observations.

A partially blocked pitot tube typically produces unstable or unusually low differential pressure readings.

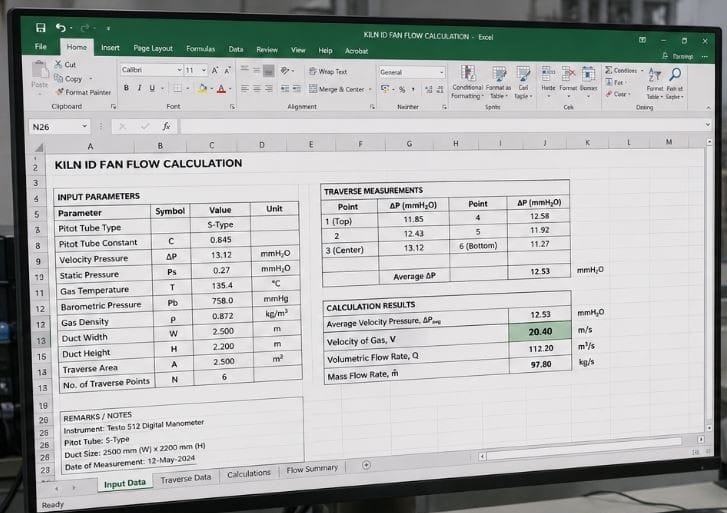

Record Data Directly in Excel

Immediately after measurement, all values should be entered into the flow calculation sheet.

Example:

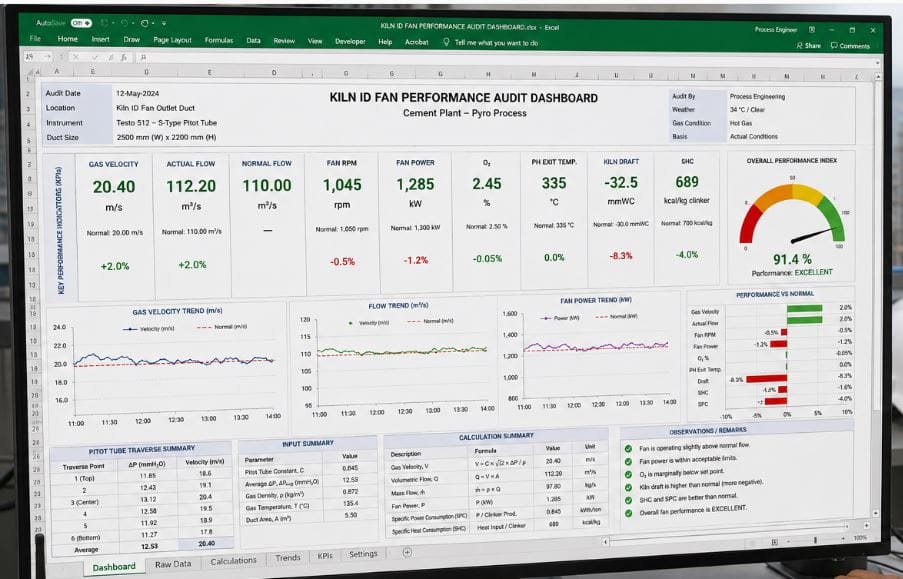

The Excel sheet then calculates:

• Gas Density
• Gas Velocity
• Actual Flow (m³/hr)
• Normal Flow (Nm³/hr)
• Fan Efficiency
• Fan Operating Point

For the Pyro Fan example, the calculated density at the traverse point was approximately:

Density = 0.68 kg/m³

Formula Used

$\rho=\rho_{NTP}\times\frac{P_{baro}+P_{static}}{P_{baro}}\times\frac{273}{273+T}$​

Where:

• ρ = Density at traverse point (kg/m³)
• ρNTP = Reference gas density at NTP (kg/Nm³) (here – 1.454)
• Pbaro = Site barometric pressure (mmWG) (Here used 9796)
• Pstatic = Static pressure at traverse point (mmWG)
• T = Gas temperature at traverse point (°C)

This density value is then used in the next step to calculate gas velocity and total fan flow.

Practical Tip

The objective is not to obtain one perfect reading. The objective is to obtain a repeatable reading that gives similar results when measured again under the same operating conditions. Consistency is often more valuable than chasing theoretical accuracy during plant audits.

Step 5: Calculate Gas Velocity from Velocity Pressure

Once the average velocity (dynamic) pressure has been measured and the actual gas density at the traverse point has been calculated, the next step is to determine the gas velocity inside the duct. This is the most important stage of the flow measurement process because the measured pressure difference is converted into actual gas movement. Any error in velocity calculation will directly affect the final flow, heat balance and false air calculations.

For S-Type Pitot Tube measurements, gas velocity is calculated using the following relationship:

$v=C\sqrt{\frac{2gP_v}{\rho}}$v

Where:

• v = Gas Velocity (m/s)
• C = Pitot Tube Constant
• g = Gravitational Acceleration (9.81 m/s²)
• Pv = Average Dynamic Pressure (mmWG)
• ρ = Actual Gas Density at Traverse Point (kg/m³)

Unlike simplified theoretical calculations, this method incorporates density correction so that the calculated velocity represents actual operating conditions inside the process duct.

Example from Pyro Fan Study

The following values were obtained during the flow measurement:

Substituting these values into the equation:

v = 0.8341 × √[(2 × 9.81 × 19.18) / 0.6308]

v = 0.8341 × √596.6

v = 0.8341 × 24.43

v ≈ 20.4 m/s

After applying the same correction methodology used in the Excel sheet, the final calculated gas velocity was approximately: 20.4 m/s
This means the process gas was travelling through the duct at nearly 20 metres per second under actual operating conditions.

Why Density Correction is Critical

Many engineers make the mistake of calculating velocity using standard air density values. This can introduce significant errors in high-temperature cement plant applications. In this example:

The actual process gas density is almost half of ambient air density. If standard air density is used, the calculated velocity and flow rate can be substantially incorrect. This is why gas temperature and static pressure measurements taken during the traverse are just as important as the velocity pressure itself.

Practical Interpretation

Velocity alone does not provide much information unless it is compared with previous measurements, design conditions or DCS trends. For example:

• Lower velocity at the same fan speed may indicate duct blockage or coating formation.
• Higher velocity may indicate increased false air ingress.
• Significant velocity changes may indicate changes in fan performance or process resistance.
• Unexpected velocity trends often provide the first indication of developing process problems before they become visible in production, SHC or SPC figures.

Quality Check Before Proceeding

Before moving to the flow calculation stage, verify that:

• Velocity readings are repeatable.
• Pitot tube alignment was correct.
• Density calculations are reasonable.
• No abnormal fluctuations were observed during measurement.

Once the gas velocity has been established, the next step is to calculate the total gas quantity handled by the fan using the duct cross-sectional area and measured velocity.

Step 6: Calculate Actual Gas Flow

Once the gas velocity has been calculated, the next step is to determine the total quantity of gas flowing through the duct. This is done by multiplying the duct cross-sectional area by the measured gas velocity.

The relationship is: Q=A* v

Where:

• Q = Actual Gas Flow (m³/s)
• A = Duct Cross-Sectional Area (m²)
• v = Gas Velocity (m/s)

The result obtained from this equation represents the actual gas volume flowing through the duct under operating conditions.

Example from Line-3 Pyro Fan Study

Measured and calculated values:

Substituting the values:

Q = 6.16 × 20
Q = 123.2 m³/s

Therefore:

Actual Flow = 123.2 m³/s

Convert to m³/hr

Since process engineers generally work with hourly gas quantities, the flow is converted from m³/s to m³/hr.

Actual Flow = 123.2 × 3600

Therefore:

Actual Gas Flow = 443,520 m³/hr

This represents the actual volume of hot process gas being handled by the fan under the measured operating conditions.

What Does This Number Mean?

By itself, the flow value does not indicate whether the fan is operating efficiently or inefficiently. The real value comes from comparing this flow with:

• Historical measurements
• Design flow
• DCS indicated flow
• Heat balance requirements
• False air calculations
• Fan performance curve

For example:

• If actual flow is significantly higher than expected, excess air or false air ingress may be present.
• If actual flow is lower than expected, duct coating, cyclone blockage or fan performance deterioration may be occurring.
• If flow remains unchanged while fan power increases, the system resistance may have increased.

Practical Observation

During plant audits, many engineers focus primarily on fan RPM and motor current. However, two operating conditions may show identical RPM and amperage while handling completely different gas quantities. This is why actual flow measurement is one of the most powerful diagnostic tools available for evaluating fan performance, false air ingress, process resistance and overall pyro system efficiency.

The next step is to convert this actual flow into Normal Flow (Nm³/hr) so that gas quantities can be compared under standard reference conditions and used for heat balance and combustion calculations.

Step 7: Convert Actual Flow to Normal Flow (Nm³/hr)

The actual gas flow calculated in the previous step represents the volume occupied by the gas at the measurement location under existing operating conditions. However, gas volume changes continuously with temperature and pressure. The same quantity of gas will occupy a much larger volume at 262°C than at normal atmospheric conditions. For this reason, actual flow values cannot be directly compared between different operating conditions, different plants or different audit periods.

To eliminate the effect of temperature and pressure variations, actual flow is converted into Normal Flow (Nm³/hr). Normal Flow represents the gas volume corrected to standard reference conditions and is the preferred basis for heat balance, combustion calculations and process analysis.

Normal Flow Conversion Formula

Example from Line-3 Pyro Fan Study

Measured values:

Step 1: Calculate Absolute Pressure

The gas is flowing under negative pressure.

Therefore:

Absolute Pressure
= Barometric Pressure + Static Pressure
= 9796 - 800
= 8996 mmWG

Step 2: Convert Temperature to Kelvin

Actual Temperature
= 262 + 273
= 535 K

Step 3: Apply Normalization

Pressure Ratio: Absolute Pressure / Normal Pressure

8996 / 9796
= 0.918

Temperature Ratio: Normal Temperature / Actual Temperature

273 / 535
= 0.510

Combined Correction Factor: 0.918 × 0.510
= 0.468

Step 4: Calculate Normal Flow

Normal Flow = 443,520 × 0.468
≈ 207,600 Nm³/hr

This value represents the equivalent gas volume at normal reference conditions.

Why Normal Flow is More Important Than Actual Flow

Most process calculations are performed using Normal Flow because gas volume changes significantly with temperature.

For example: Actual Flow = 443,520 m³/hr looks much larger than Normal Flow = 207,600 Nm³/hr but both represent the same quantity of gas. The difference is purely due to gas expansion at high temperature.

How This Value Is Used in Cement Plants

Once Normal Flow is established, it becomes one of the most important parameters for process optimization. It is commonly used for:

• Kiln and calciner heat balance calculations
• False air assessment studies
• Combustion air requirement calculations
• Gas mass balance development
• Cyclone efficiency evaluation
• Specific Heat Consumption (SHC) analysis
• Fan performance evaluation
• Comparison with design gas quantities
• DCS flow validation

Practical Observation

During plant audits, actual flow is mainly an intermediate calculation. The value that is ultimately used for meaningful process analysis is Normal Flow (Nm³/hr). This is because Normal Flow removes the influence of temperature and pressure, allowing engineers to compare gas quantities on a common basis and identify whether the process is handling the required gas volume or moving unnecessary gas due to false air ingress, excess combustion air or process inefficiencies.

Step 8: Compare the Measured Flow with Process Conditions

Once the actual flow and normal flow have been calculated, the next step is to evaluate whether the measured gas quantity is reasonable for the operating condition of the plant. In most kiln ID fan, pyro fan and raw mill fan circuits, continuous online flow measurement is not available. Therefore, the measured flow must be assessed against process conditions, historical measurements and design expectations.

The measured flow should be compared with:

• Previous flow audit results
• Design gas flow
• Fan performance curve
• Fan RPM
• Fan motor current (Amps)
• Kiln feed rate
• Coal consumption
• O₂ level
• Preheater exit temperature
• Draft profile across the system

Example

In this case, kiln feed and fan speed are almost unchanged, but gas flow has increased by approximately 10%. Such a situation generally indicates that the fan is moving additional gas that is not contributing to the process. Common causes include:

• False air ingress through expansion joints
• Kiln inlet seal leakage
• Raw mill circuit leakage
• Damaged inspection doors
• Air ingress through duct joints and manholes
• Excess combustion air

Similarly, if measured flow decreases while fan RPM remains constant, possible causes may include:

• Coating formation inside ducts
• Cyclone blockages
• Fan blade wear
• Increased system resistance
• Partial restriction in gas flow path

What Is the Real Purpose of Flow Measurement?

The objective of a flow measurement study is not simply to generate a flow number. The real purpose is to understand:

• Is the fan moving the required gas quantity?
• Is excess air entering the system?
• Is the gas flow sufficient for combustion and heat transfer?
• Has system resistance increased over time?
• Is the fan operating near its intended duty point?
• Are SHC and SPC being affected by unnecessary gas movement?

A measured flow value becomes useful only when it is correlated with actual process conditions. The strongest conclusions are obtained when flow data is analyzed together with O₂, draft, temperature, kiln feed and fan power consumption.

Step 9: Use the Flow Data for Process Improvement

Completing the flow measurement is only half the job. The real value comes from using the measured flow data to identify process inefficiencies, validate operating assumptions and improve overall plant performance. A flow measurement exercise should always end with a process analysis. Otherwise, the measured Nm³/hr becomes just another number in an Excel sheet.

1. False Air Assessment

One of the most common applications of flow measurement is identifying false air ingress. By comparing gas quantities at different locations in the process, it becomes possible to estimate how much unwanted ambient air is entering the system.

For example:

• Kiln Inlet Flow = 420,000 Nm³/hr
• PH Exit Flow = 510,000 Nm³/hr

The additional gas volume must originate from either combustion air addition or false air ingress. Combined with O₂ measurements, this data can be used to estimate false air percentage and identify likely leakage zones such as:

• Expansion joints
• Kiln inlet seals
• Inspection doors
• Duct joints
• Raw mill circuit leakages

2. Fan Performance Evaluation

Measured flow is essential for determining whether the fan is operating close to its intended duty point. Using the measured flow and fan static pressure, the operating point can be plotted on the fan performance curve. This helps answer important questions:

• Is the fan operating near its Best Efficiency Point (BEP)?
• Has the operating point shifted over time?
• Is the fan oversized or undersized for current production?
• Has fan efficiency deteriorated due to wear or material build-up?

A fan operating far away from its BEP generally consumes more power for the same amount of useful work.

3. Kiln Heat Balance Verification

Gas flow is one of the most important inputs in a kiln heat balance. Once the actual gas quantity is known, it becomes possible to calculate:

• Sensible heat carried by exit gases
• Stack heat losses
• Preheater heat losses
• Calciner gas heat content
• Overall thermal efficiency

Without reasonably accurate gas flow data, SHC calculations become assumptions rather than engineering calculations.

4. Cyclone and Preheater Performance Analysis

Gas flow has a direct influence on cyclone separation efficiency. Excessive flow may increase:

• Cyclone pressure drop
• Dust carry-over
• Internal recirculation

Low flow may reduce:

• Suspension quality
• Heat transfer efficiency

By correlating measured flow with cyclone pressure drops, process engineers can identify:

• Damaged dip tubes
• Internal refractory failures
• Cyclone wear
• Developing blockages

5. Raw Mill Drying Optimization

In raw mill operation, gas quantity directly affects drying capacity. Measured flow can be used to verify:

• Whether sufficient drying gas is available
• Whether excessive hot gas is being wasted
• Whether mill outlet temperature is being limited by gas availability

Many drying limitations are eventually found to be gas-flow limitations rather than grinding limitations.

6. ID Fan Power Optimization

One of the biggest benefits of flow measurement is identifying excess airflow. Many kiln systems operate with higher gas quantities than actually required. Every unnecessary cubic metre of gas must be:

• Heated
• Transported through the system
• Pulled by the ID fan

This directly increases:

• Fan power consumption
• Specific Power Consumption (SPC)
• Specific Heat Consumption (SHC)

Once the actual process requirement is known, fan loading can often be reduced by optimizing:

• Draft settings
• Combustion air
• False air ingress
• Damper positions
• Fan operating point

Final Objective

The purpose of a flow measurement study is not to calculate flow. The purpose is to understand how efficiently the process is moving gas and whether that gas movement is contributing to production or simply consuming additional energy. When combined with O₂, temperature, pressure drop, kiln feed and fan power data, flow measurement becomes one of the most powerful tools available for process optimization, energy reduction and troubleshooting in a cement plant.

Practical Observation from Plant Audits

During fan flow studies, the objective should not be limited to calculating gas quantity. The real objective is to understand what the measured flow reveals about the condition of the process. In many cement plants, major energy savings are rarely achieved by increasing fan speed or replacing the fan itself. More often, the root causes are hidden process issues that remain unnoticed because actual gas flow has never been verified.

Typical examples include:

• False air ingress through expansion joints and inspection doors
• Kiln inlet seal leakages
• Cyclone internal damage or dip tube deterioration
• Duct coating and material build-up
• Increased system resistance
• Incorrect process assumptions
• Instrumentation and measurement errors

A flow measurement exercise frequently shows that the fan is handling significantly more gas than the process actually requires. In such cases, the additional gas does not contribute to production, heat transfer or combustion efficiency. Instead, it increases fan power consumption, gas heat losses and overall operating cost.

Similarly, a reduction in measured flow may indicate developing blockages, cyclone performance issues or fan deterioration long before these problems become visible through production losses. For this reason, flow measurement should be viewed as a diagnostic tool rather than a calculation exercise. The measured value becomes meaningful only when it is correlated with O₂, draft, temperature, pressure drop, kiln feed rate and fan power consumption. Accurate flow measurement converts assumptions into measurable facts and provides a reliable foundation for process troubleshooting, energy optimization, false air reduction and performance improvement across the entire pyroprocessing system.

FAQs

1. Why is actual fan flow measurement important in cement plants?

Actual fan flow measurement helps verify the real gas quantity moving through the system. It is essential for kiln heat balance studies, false air assessment, fan performance evaluation, cyclone efficiency analysis, SHC calculations and process optimization. RPM, damper position and motor current alone cannot accurately indicate gas flow.

2. Which instrument is commonly used for fan flow measurement?

An S-Type Pitot Tube connected to a differential pressure manometer is the most commonly used instrument for measuring gas velocity in Kiln ID Fan, Pyro Fan and Raw Mill Fan circuits. It performs reliably under high-temperature and dusty conditions.

3. Why are multiple velocity pressure readings taken instead of a single reading?

Gas flow inside cement plant ducts is rarely perfectly stable. Velocity pressure fluctuates due to draft variations, cyclone discharge, fan pulsations and dust loading. Taking multiple readings and calculating an average value improves measurement reliability and reduces random errors.

4. How is gas velocity calculated from Pitot Tube measurements?

Gas velocity is calculated using the measured velocity pressure, gas density and Pitot Tube coefficient.

$v=C\sqrt{\frac{2gP_v}{\rho}}$

Where:

• v = Gas Velocity (m/s)
• C = Pitot Constant
• g = Gravitational Acceleration
• Pv = Velocity Pressure
• ρ = Gas Density

5. Why is gas density important during flow calculations?

Gas density changes significantly with temperature and pressure. Process gas at 250–300°C may have nearly half the density of ambient air. Using incorrect density values can produce substantial errors in velocity and flow calculations.

6. What is the difference between Actual Flow and Normal Flow?

Actual Flow (m³/hr) represents gas volume at operating temperature and pressure.

Normal Flow (Nm³/hr) represents the same gas quantity corrected to standard reference conditions. Normal Flow is preferred for heat balance calculations, false air studies and combustion analysis because it eliminates temperature and pressure effects.

7. Can DCS parameters replace manual fan flow measurement?

No. Most kiln and pyro fan systems do not have direct online flow measurement. DCS parameters such as RPM, damper opening, draft and motor current provide indirect indications but cannot accurately determine actual gas quantity moving through the system.

8. What can cause fan flow to increase without any increase in production?

Common reasons include:

• False air ingress
• Kiln inlet seal leakage
• Expansion joint leakage
• Inspection door leakage
• Excess combustion air
• Raw mill circuit air leaks

In such cases, the fan handles more gas without increasing useful production.

9. What can cause fan flow to decrease at the same fan RPM?

Possible causes include:

• Duct coating formation
• Cyclone blockage
• Dip tube damage
• Increased system resistance
• Fan blade wear
• Partial gas path restrictions

These conditions reduce gas movement even when fan speed remains unchanged.

10. How often should fan flow audits be performed?

A detailed fan flow audit is typically recommended during:

• Annual process audits
• Heat balance studies
• Major shutdown inspections
• Fan performance investigations
• False air assessment projects
• SHC and SPC optimization programs

Regular measurements help identify developing process problems before they impact production, fuel consumption or power consumption.
