Mastering Kiln Heat Balance

Your Essential 2026 Guide to the Excel Sheet Calculation

As a cement process optimization engineer with two decades of hands-on experience, I can attest that understanding and meticulously managing the kiln heat balance calculation excel sheet is paramount for achieving peak operational efficiency and significant cost savings in any cement plant. This comprehensive guide delves into the intricacies of kiln heat balance, providing you with the knowledge to leverage an Excel sheet for precise calculations, troubleshoot common issues, and drive sustainable improvements. Optimizing your kiln’s thermal performance isn’t just about reducing fuel consumption; it’s about enhancing clinker quality, extending refractory life, and minimizing environmental impact.

1. The Critical Importance of Kiln Heat Balance

The rotary kiln system is the heart of cement production, consuming a substantial portion of the plant’s total energy. A precise kiln heat balance calculation excel sheet is not merely an academic exercise; it is a vital tool for process engineers to:

• Identify and quantify heat losses: Pinpointing where energy is wasted allows for targeted interventions.
• Optimize fuel consumption: Directly impacts operational costs and carbon footprint.
• Improve thermal efficiency: Ensures maximum heat utilization within the process.
• Enhance clinker quality: Stable thermal conditions lead to consistent product.
• Extend refractory life: Avoiding thermal shocks and hot spots prolongs the life of expensive refractory linings.
• Facilitate troubleshooting: Provides a diagnostic framework for process upsets.

Without a robust heat balance, optimization efforts are often based on guesswork, leading to suboptimal performance and missed opportunities for significant savings. My 20 years in the field have repeatedly shown that a well-maintained and regularly updated kiln heat balance calculation excel sheet is the cornerstone of effective kiln management.

2. Understanding the Kiln System: Inputs and Outputs

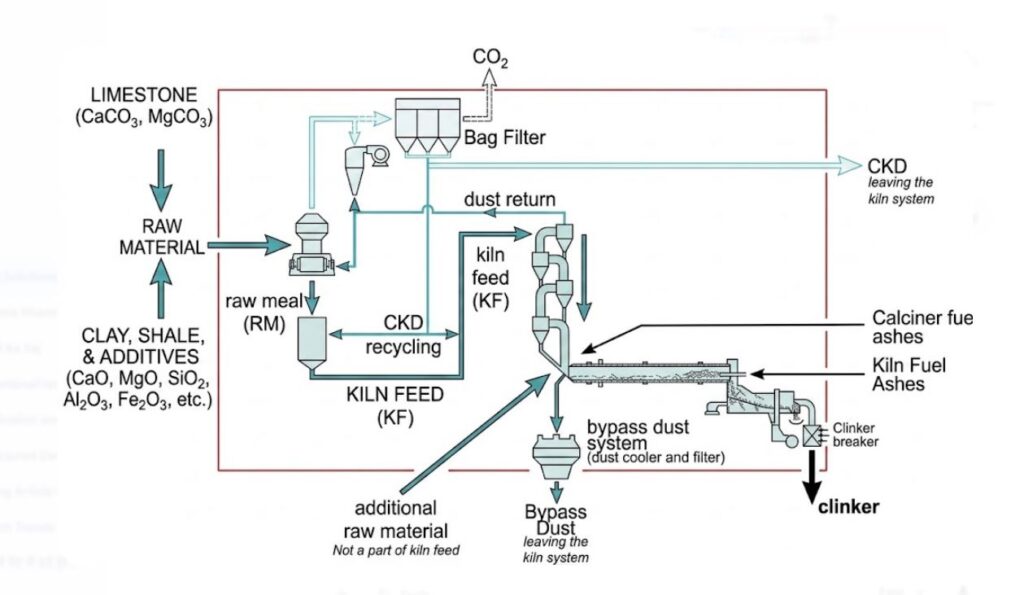

Figure 3: A general overview of a cement kiln system, illustrating the flow of materials and energy.

At its fundamental level, a kiln heat balance adheres to the first law of thermodynamics: energy cannot be created or destroyed, only transformed. Therefore, the total heat entering the system must equal the total heat leaving the system, plus any heat stored or consumed by chemical reactions. For a cement kiln, this involves a complex interplay of various heat inputs and outputs.

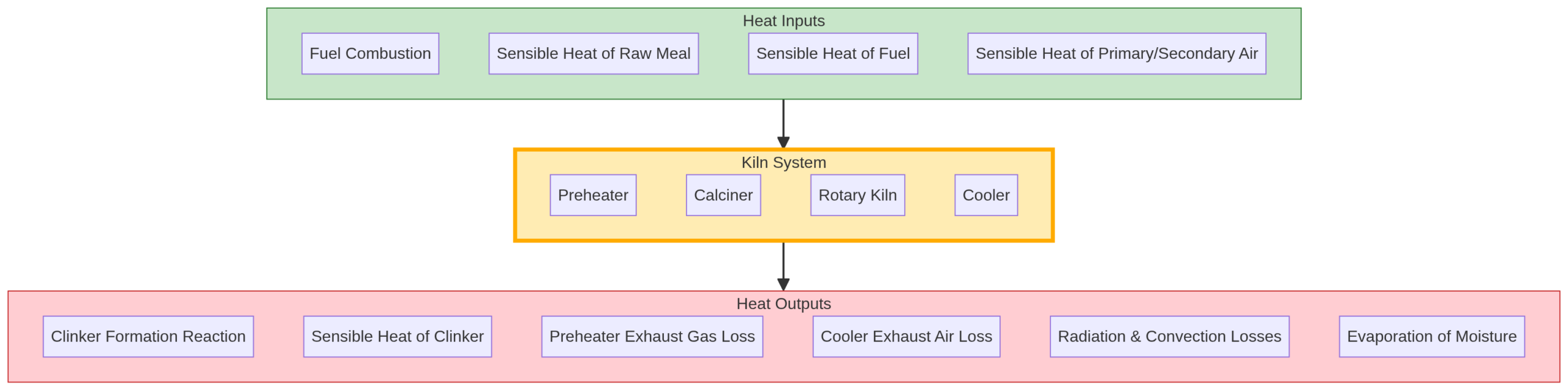

Figure 1: A simplified flow diagram illustrating the major heat inputs and outputs of a cement kiln system, crucial for any kiln heat balance calculation excel sheet.

Heat Inputs

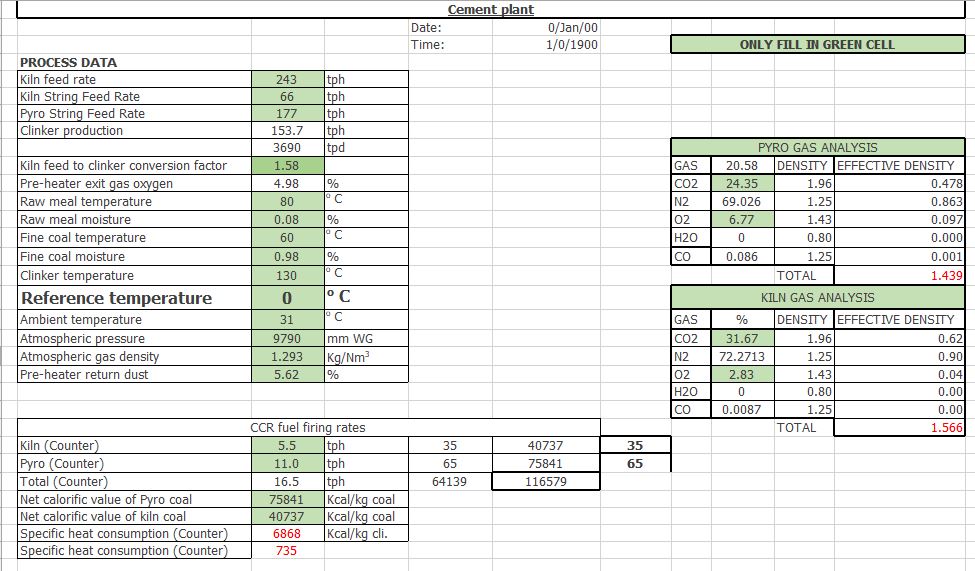

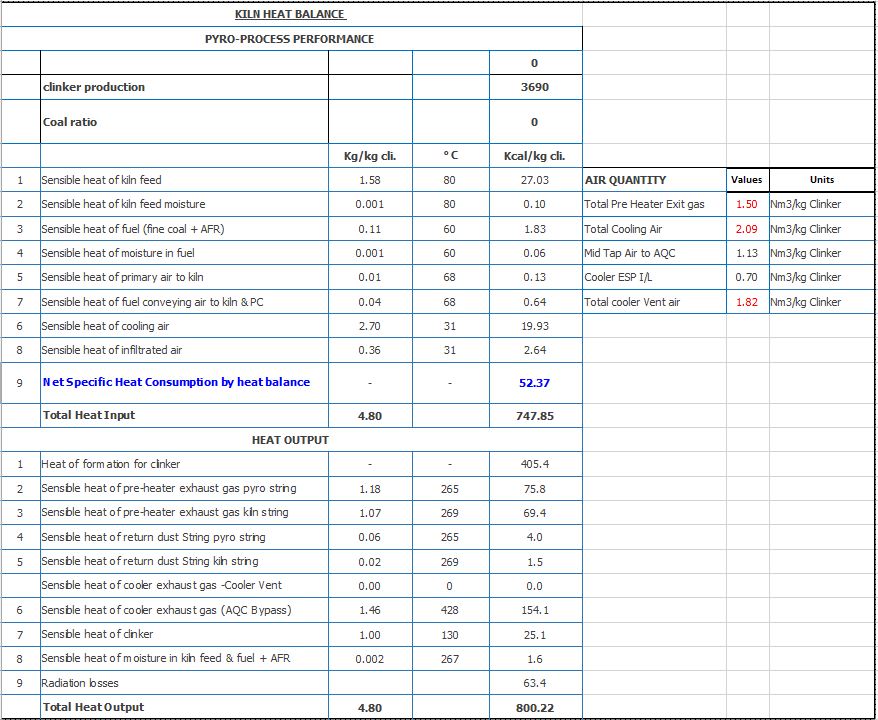

Figure 4: Example of data entry for a kiln heat balance, often found in a kiln heat balance calculation excel sheet.

Heat inputs are the sources of thermal energy supplied to the kiln system. These typically include:

• Heat from Fuel Combustion: The primary source, derived from the calorific value of fuels like coal, petcoke, natural gas, or alternative fuels.
• Sensible Heat of Raw Meal: Heat carried into the system by the preheated raw meal from the preheater tower.
• Sensible Heat of Primary and Secondary Air: Heat brought in by the combustion air, especially the hot secondary air from the clinker cooler.
• Sensible Heat of Fuel: Heat contained within the fuel itself before combustion.

Heat Outputs

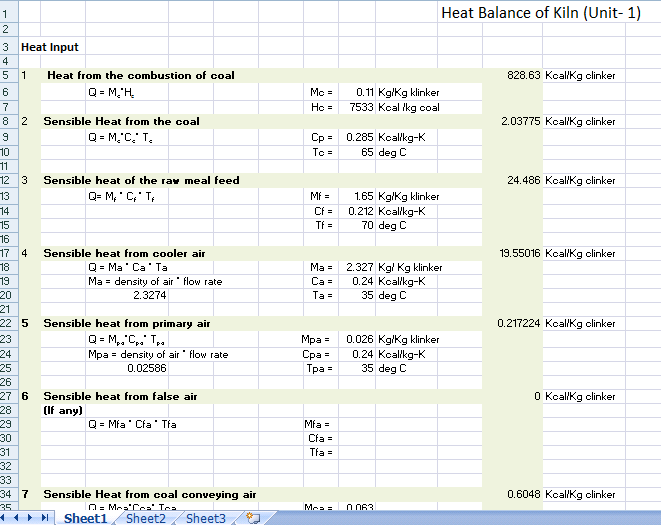

Figure 5: A visual representation of various heat output components in a kiln heat balance.

Heat outputs represent the ways thermal energy leaves the kiln system. These are often categorized as useful heat (for clinker formation) and various losses:

• Heat for Clinker Formation (Chemical Reaction): The endothermic heat required for the calcination of limestone and the formation of clinker minerals.
• Sensible Heat of Clinker: Heat carried out by the hot clinker leaving the kiln to the cooler.
• Preheater Exhaust Gas Loss: The largest heat loss, representing the sensible heat carried away by the exhaust gases leaving the preheater.
• Cooler Exhaust Air Loss: Heat lost with the excess air vented from the clinker cooler.
• Radiation and Convection Losses: Heat dissipated from the external surfaces of the kiln shell, preheater, and cooler to the ambient environment.
• Heat Loss due to Dust: Sensible heat carried away by bypass dust or kiln dust.
• Heat Loss due to Moisture Evaporation: Energy consumed to evaporate moisture present in the raw meal or fuel.

3. Why an Excel Sheet for Kiln Heat Balance Calculation?

While specialized software exists, an Excel sheet remains an incredibly powerful and flexible tool for kiln heat balance calculation. Its advantages include:

• Accessibility and Cost-Effectiveness: Widely available and requires no specialized software licenses.
• Flexibility and Customization: Easily adaptable to specific plant configurations, fuel types, and data collection methods. You can tailor it to your exact needs.
• Transparency: All formulas and data linkages are visible, allowing for easy verification and understanding of the calculations.
• Scenario Analysis: Enables quickmodeling of different operational scenarios and their impact on heat balance.
• Training and Collaboration: Relatively easy to share and explain to plant personnel, fostering better understanding and collaboration.

For a process engineer, mastering the kiln heat balance calculation excel sheet is akin to a financial analyst mastering their spreadsheets – it’s a fundamental skill that unlocks deep insights and drives informed decision-making.

4. Key Components of a Kiln Heat Balance Calculation Excel Sheet

A robust kiln heat balance calculation excel sheet is structured logically to facilitate data input, calculation, and analysis. Here’s a breakdown of its essential sections:

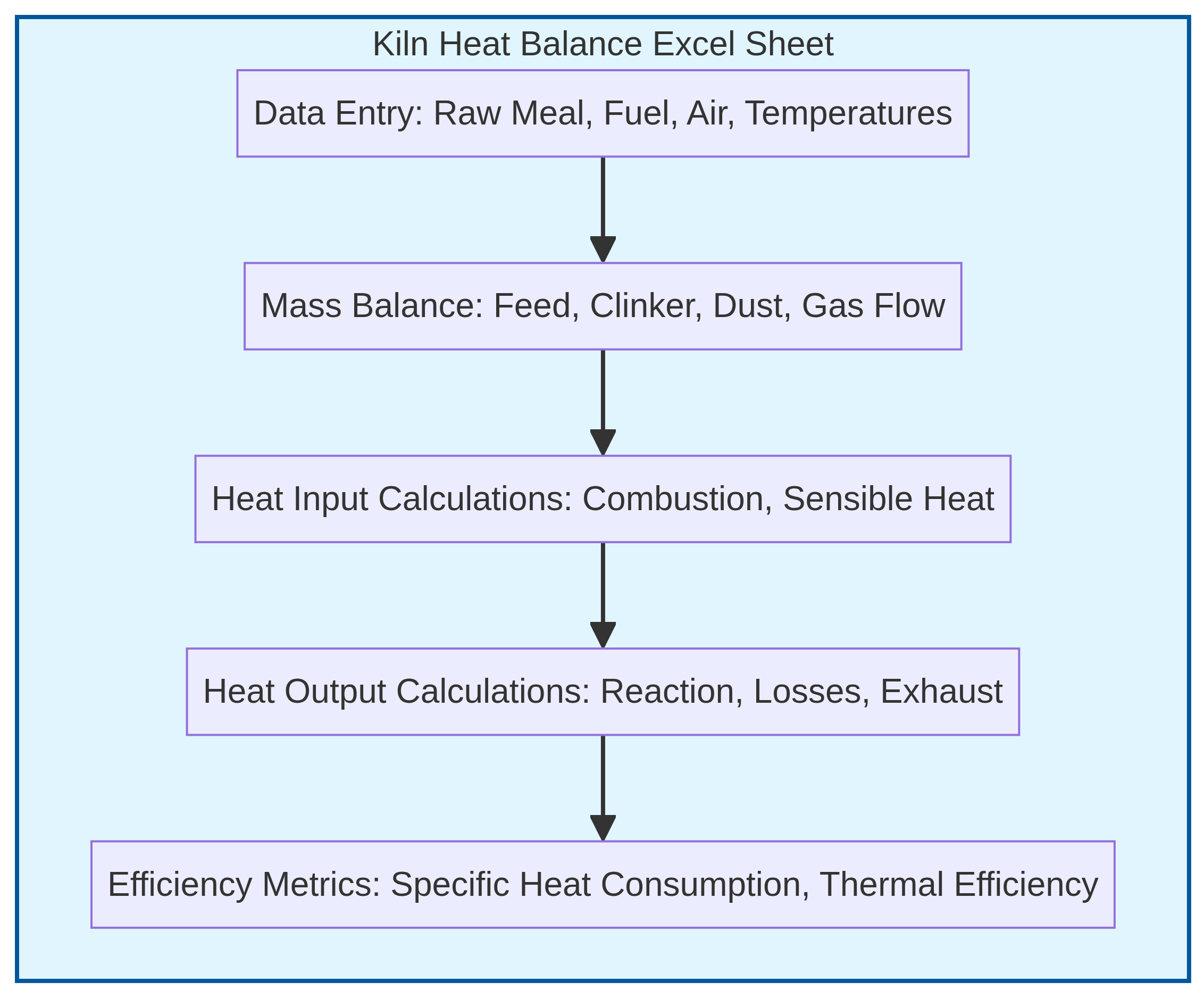

Figure 2: Conceptual structure of a comprehensive kiln heat balance calculation excel sheet, highlighting key interconnected sections.

Data Entry

This section is where all raw operational data is input. Accuracy here is paramount. It typically includes:

• Raw Meal Analysis: Chemical composition (e.g., CaO, SiO2, Al2O3, Fe2O3, LOI), moisture content.
• Fuel Analysis: Proximate and ultimate analysis (e.g., moisture, ash, volatile matter, fixed carbon, C, H, S, N, O), calorific value.
• Air Parameters: Ambient temperature, humidity, excess air factors.
• Temperature Measurements: Kiln inlet/outlet gas temperatures, clinker temperature, preheater stage temperatures, cooler exhaust temperature, shell surface temperatures.
• Flow Rates: Raw meal feed rate, fuel feed rate, clinker production rate, air flows.

Mass Balance Section

Before performing a heat balance, a thorough mass balance is essential. This section calculates the flow rates of all materials (raw meal, fuel, clinker, dust, gases) through the kiln system, ensuring that mass entering equals mass leaving. This provides the basis for calculating the sensible heat carried by each stream.

Heat Input Calculations

This section systematically calculates each heat input component based on the data entry and mass balance. Formulas for fuel combustion heat, sensible heat of raw meal, and air streams are applied here.

Heat Output Calculations

Similarly, this section calculates all heat output components, including the heat required for clinker formation, sensible heat of clinker, and all identified heat losses (exhaust gases, cooler air, radiation, convection, dust, moisture evaporation).

Summary and Efficiency Metrics

The final section compiles the results, presenting the total heat inputs and outputs, the heat balance closure (ideally close to zero), and key performance indicators (KPIs) such as:

• Specific Heat Consumption (SHC): kWh/ton clinker or kcal/kg clinker – the most critical metric.
• Thermal Efficiency: Percentage of heat utilized for clinker formation versus total heat input.
• Heat Loss Distribution: Breakdown of losses by category (e.g., exhaust gas, radiation).

5. Step-by-Step Guide to Performing a Kiln Heat Balance Calculation

Performing a reliable kiln heat balance calculation excel sheet involves a systematic approach:

1. Data Collection

Gather all necessary operational data over a stable period (e.g., 24 hours). This includes continuous measurements from the Distributed Control System (DCS) and laboratory analyses of raw meal, fuel, and clinker. Ensure data consistency and accuracy.

2. Mass Balance Establishment

Construct a detailed mass balance for the entire kiln system. This involves accounting for raw meal, fuel, combustion air, false air, clinker, kiln dust, and exhaust gases. The mass balance provides the foundation for all subsequent heat calculations.

3. Calculating Heat Inputs

Utilize the collected data and established mass flows to calculate each heat input component. For example, fuel combustion heat is determined by the fuel’s calorific value and its consumption rate. Sensible heat is calculated using mass flow, specific heat capacity, and temperature differences.

4. Calculating Heat Outputs

Systematically calculate all heat output components. This includes the heat of reaction for clinkerization, sensible heat carried by clinker and exhaust gases, and various heat losses. Radiation and convection losses often require empirical formulas or specialized software, but reasonable approximations can be made for an Excel-based calculation.

5. Analyzing the Balance and Efficiency

Sum up all heat inputs and outputs. The difference should ideally be negligible. Analyze the distribution of heat losses to identify the largest areas for improvement. Calculate key efficiency metrics like Specific Heat Consumption (SHC) and thermal efficiency.

6. Interpreting Results and Troubleshooting Common Issues

An effectively executed kiln heat balance calculation excel sheet is a powerful diagnostic tool. Here’s how to interpret its findings and troubleshoot common operational problems:

High Specific Heat Consumption

If your SHC is consistently high, your heat balance will likely point to one or more of the following:

• High Preheater Exhaust Gas Temperature: Indicates inefficient heat transfer in the preheater. Look for blockages, coating formation, or incorrect gas distribution.
• High Cooler Exhaust Air Temperature/Volume: Suggests inefficient clinker cooling or excessive false air ingress into the cooler.
• Excessive Radiation Losses: Often due to damaged refractory, poor insulation, or excessive shell temperatures. Conduct a shell temperature survey.
• High Moisture in Raw Meal/Fuel: Evaporation of moisture consumes significant heat. Investigate raw material drying or fuel preparation.
• High Bypass Dust Loss: If your kiln has a bypass, excessive dust loss carries away valuable heat.

Unaccounted Heat Losses

If your heat balance does not close (i.e., inputs significantly exceed outputs, or vice-versa, with a large unaccounted-for difference), it suggests data inaccuracies or missing components. Re-check:

• Measurement Errors: Calibrate instruments (thermocouples, flow meters, gas analyzers).
• Sampling Issues: Ensure representative samples for fuel and raw meal analysis.
• False Air Ingress: Uncontrolled air leaks into the system (e.g., kiln inlet/outlet seals, ductwork) can significantly skew the balance.

7. Advanced Optimization Strategies Using Your Excel Sheet

Beyond basic analysis, your kiln heat balance calculation excel sheet can be a dynamic tool for advanced optimization:

Sensitivity Analysis

By varying key input parameters (e.g., fuel calorific value, raw meal moisture, exhaust gas temperature) within your Excel model, you can understand their impact on SHC and other KPIs. This helps prioritize optimization efforts by identifying the most sensitive variables.

Scenario Planning

Model different operational scenarios, such as switching to an alternative fuel, implementing a new preheater stage, or improving cooler efficiency. Your Excel sheet can quantitatively predict the energy savings and operational benefits of these changes before costly implementation.

8. Best Practices for Maintaining Your Kiln Heat Balance Calculation Excel Sheet

To ensure your kiln heat balance calculation excel sheet remains a reliable asset:

• Regular Updates: Periodically update the sheet with new operational data (e.g., monthly, quarterly) to track trends and validate improvements.
• Version Control: Maintain clear version control to track changes and prevent errors.
• Documentation: Document all assumptions, formulas, and data sources within the sheet.
• Validation: Cross-check results with historical data, plant records, and industry benchmarks.
• Training: Ensure all relevant personnel understand how to use and interpret the sheet.

9. Conclusion: The Power of Precision in Kiln Optimization

The kiln heat balance calculation excel sheet is an indispensable tool for any cement process engineer committed to operational excellence. It provides a quantitative framework for understanding energy flows, identifying inefficiencies, and driving continuous improvement in the most energy-intensive section of a cement plant. By mastering this tool, you empower yourself to make data-driven decisions that lead to substantial fuel savings, enhanced clinker quality, and a more sustainable cement production process. Embrace the power of precision, and transform your kiln operations from good to great.
